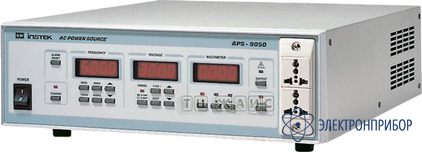

- Два выхода: 0 … 300 В; 45 … 500 Гц; макс. мощность 300 ВА; max ток 2,6 А;
- Дискретность установки: 0,1/1 В; 0,1/1 Гц;
- Фиксированные значения: 110, 220 В; 50, 60 Гц;
- Коэффициент искажений не более 0,5%;
- Нестабильность выходного напряжения не хуже 0,1 В;
- Электронное отключение нагрузки, блокировка лицевой панели;
- Запись/считывание до 4 профилей;
- Защита выхода от короткого замыкания;
- Три индикатора: вольтметр (True RMS), частотомер, ампер-/ваттметр
-
-
Комплект поставки APS-9301
Наименование Количество Источник переменного тока APS-9301 1 -
Файлы для APS-9301
Все товары группы
APS-9301 & APS-9501 & APS-9102 User’s Manual
Contents
1.
Safety terms and symbols
……………………….……….
1
2.
Installation
………………………….………………………..
2
3.
Operation
……………………………………………………..
4
4.
Panel Description
…………………………………………..
8
5.
Calibration
…………………………………………….…..
11
6.
Circuit Principle
……………………………………………
14
7
Block Diagram
………………………………………………
15
8.
Specification
…………………………………………………
16
9.
Maintenance
…………………………………………………
18
9.1
Cleaning
……………………………………………………..
18
9.2
Troubleshooting
……………………………………………
18
APS-9301 & APS-9501 & APS-9102 User’s Manual
1
1.
SAFETY TERMS AND SYMBOLS
These terms may appear in this manual or on the product
：
WARNING：Warning statements identify condition or practices
that could result in injury or loss of life.
Caution：Caution statements identify conditions or practices that
could result in damage to this product or other property.
The following symbol may appear in this manual or on the product：
Attention refer to Manual.
